Grip dimensions:
30mm
95mm
90mm

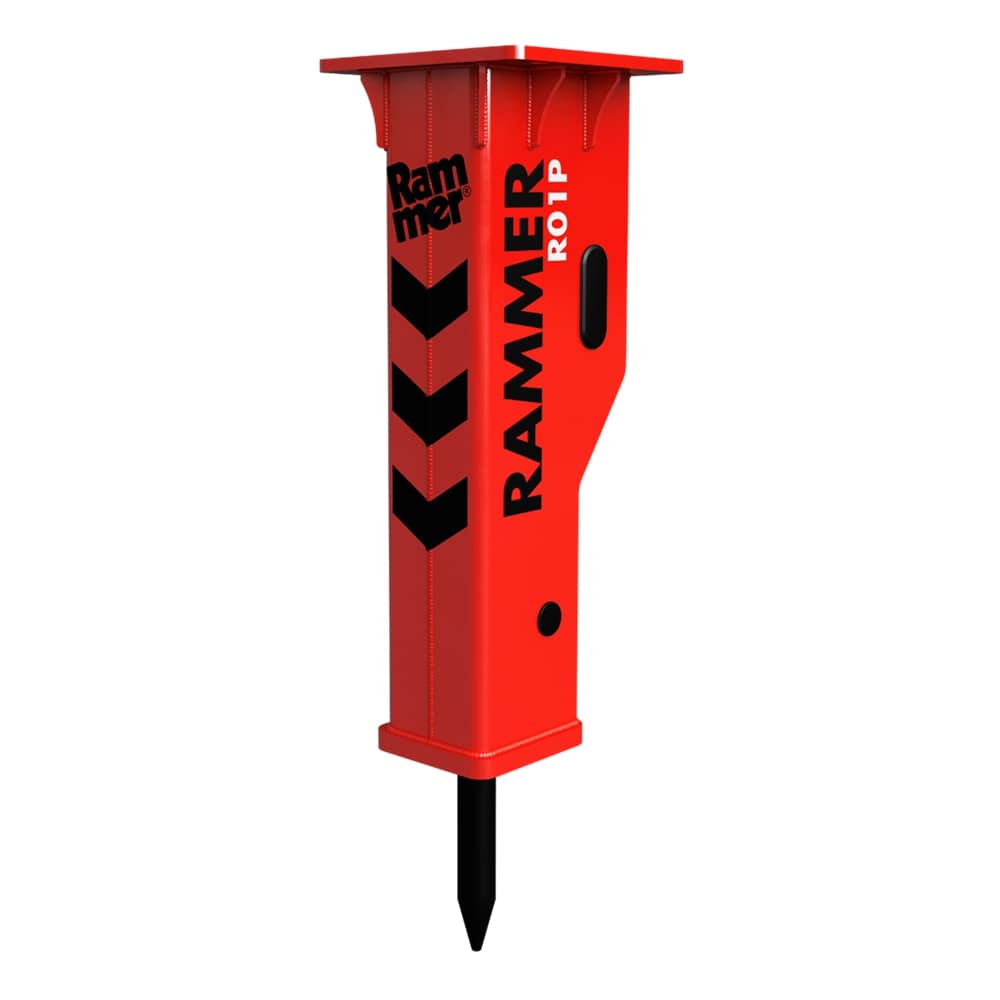

The Rammer R01P is your reliable and profitable solution for carriers between 0.7-2.1 tons. The 95 kg hammer features a robust, silenced and vibration suppressed housing, which increases both application versatility and housing lifetime.
The R01P's simple impact unit design with piston accumulator operating principle and excellent power-to-weight ratio guarantees low owning and operating costs.
SPECIFICATION
| Minimum working weight, flange mounted *1 | 95 kg | 209 lb |
| Weight | 75 kg | 165 lb |
| Impact rate (frequency) | 700 - 1400 bpm | |
| Operating pressure | 80 - 120 bar | 1160 - 1740 psi |
| Oil flow range | 15 - 25 l/min | 4 - 6.6 gal/min |
| Pressure relief setting *2 | 150 bar | 2175 psi |
| Pressure relief max | 170 bar | 2465 psi |
| Back pressure max | 20 bar | 190 psi |
| Input power | 5 kW | 7 hp |
| Tool diameter | 40 mm | 1.57 in |
| Pressure line connection (IN) | BSPP-internal 1/2" | |
| Return line connection (OUT) | BSPP-internal 1/2" | |
| Pressure line size, min. inner diameter | 12 mm | 0.47 in |
| Return line size, min. inner diameter | 12 mm | 0.47 in |
| Optimum oil temperature | 40 - 60 °C | 104 - 140 °F |
| Allowed oil temperature range | -20 - 80 °C | -4 - 176 °F |
| Optimum oil viscosity at operating temperature | 30 - 60 cSt | |
| Allowed viscosity range | 20 - 1000 cSt | |
| Skid steer, robot weight, range *3 | 0.7 - 1.6 t | 1500 - 3500 lb |
| Carrier weight, range *3 | 0.8 - 2.1 t | 1800 - 4600 lb |
| Noise level, measured (2000/14/EC) | 110 dB(A) | |
| Noise level, guaranteed (2000/14/EC) | 114 dB(A) | |
